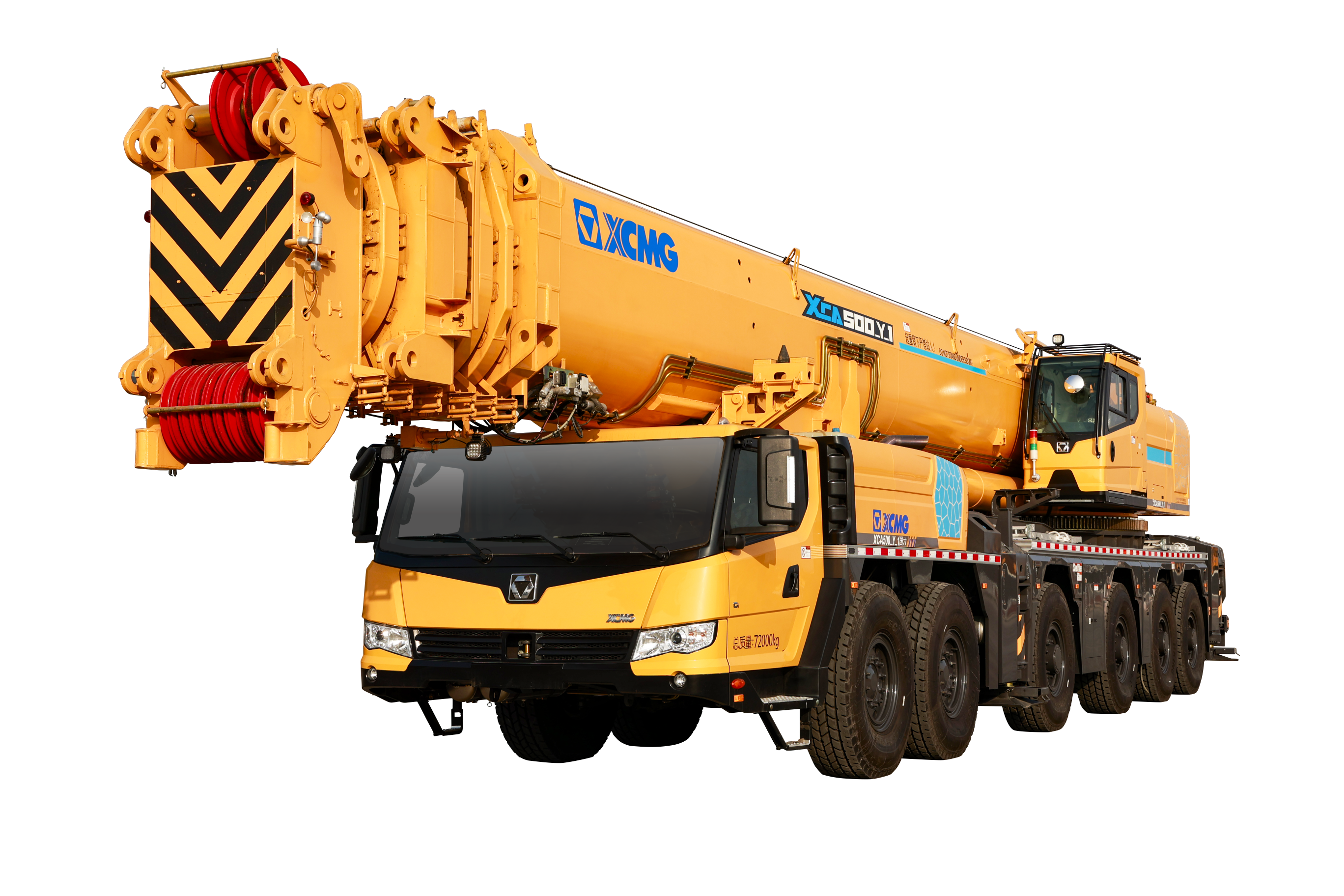

XCA500_Y_1

All Terrain Crane
XCA500_Y_1
Max. load capacity(t): 500 Telescopic boom(m): 85 Number of axles: 6
Order Online Service Outlets
XCA500_Y_1

The 500 t all terrain crane with 6 axles and H-shaped outriggers can be used under typical OMs including maintenance of wind turbine up to 2.0MW, hoisting for high-rise buildings and large petrochemical and power plant as well as rail transit construction.

XCA500_Y_1
Service Outlets Order Online
  • Parameters
  • Cases
PARAMETERS
Item Unit Parameter
Max. load capacity t 500
Telescopic boom m 85
Number of axles - 6
Max. hoist height m 137
Max.load moment kN.m 13800
Drive engine model - WP15H660E61（Weichai）
Drive engine power kw 485
Drive/Steering - 12×8×12
Driving speed km/h 80
Dead Weight in Travel State kg 72000
Dimensions mm 16835×3000×4000
Emission standard - China VI emission standard
cases
Oil Refinery Project in South Asia
Oil Refinery Project in South Asia
Singapore TWRP Project
Singapore TWRP Project
XCA100_E in Europe
XCA100_E in Europe
The XCA3000, the world’s largest tonnage wheeled crane，in Yingkou, China
The XCA3000, the world’s largest tonnage wheeled crane，in Yingkou, China
Oil Refinery Project in Saudi Arabia
Oil Refinery Project in Saudi Arabia
