Products

XCT160_Y1

Truck Crane
XCT160_Y1
Max. load capacity(t): 160 Telescopic boom(m): 88 Number of axles: 5
Order Online Service Outlets
XCT160_Y1

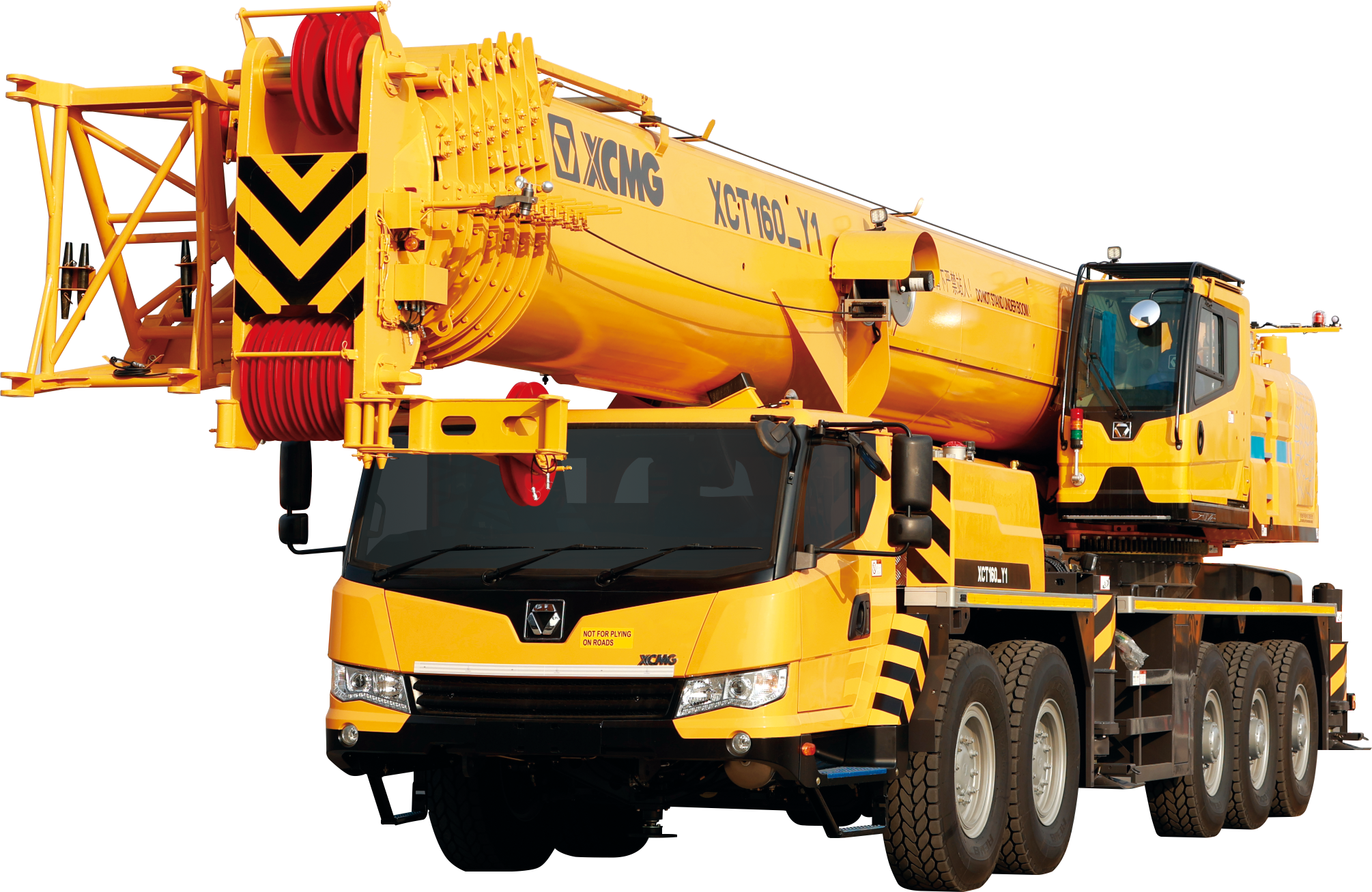

XCT160_Y1 is a 5-axle, 160-tonne truck crane with a wide range of applicable operation modes and economical operation. It is widely used for the infrastructure constructions in high-speed railway project, urban overpass construction, assembly and disassembly of tower crane, etc., as well as the lifting and installation operations in the other complex working environments, such as oilfields and chemical industry.

XCT160_Y1
Service Outlets Order Online
  • Parameters
  • Cases
PARAMETERS
Item Unit Parameter
Max. load capacity t 160
Telescopic boom m 88
Number of axles - 5
Max. hoist height m 116
Max.load moment kN.m 4939
Drive engine model - WP10HG400E670
Drive engine power kw 294
Drive/Steering - 10×6×8
Driving speed km/h 48
Dead Weight in Travel State kg 54900
Dimensions mm 16393×3000×3990
Emission standard - BSV
