Products

RP805S

Compact Tracked Paver
RP805S
Basic paving width(m): 2.5~5.0 Max. paving width(m): 8 Max. paving thickness(mm): 300
RP805S

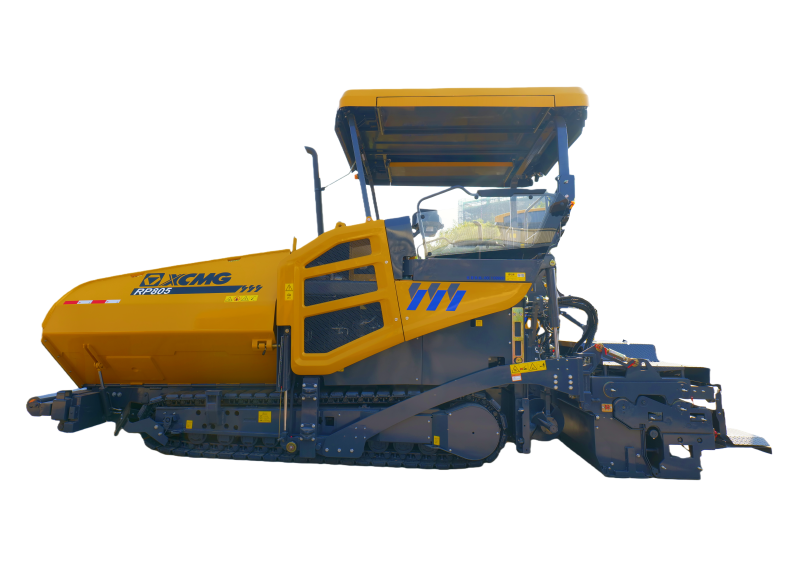

RP805S Paver is one of the important models of 5 series middle paver.According to the domestic and international market demand,8m middle retractable Paver is developed on the basis of current middle Paver. This Paver is mainly used for surface asphalt paving construction,giving consideration to stable soil material paving. Equipped with a new generation of intelligent control system,this machine adopts the most advanced technologies in the world today,such as full hydraulic drive, microcomputer control, left and right Independent Drive ,ultrasonic material level sensing control, electronic automatic leveling,vibrating compaction,etc,this machine has the advantages of good paving stability, uniform feeding and distributing material ,high precompaction density, good flatness,comfortable operation,convenient maintenance ,energy sving and environmentalprotection,etc…

RP805S
  • Parameters
PARAMETERS
Item Unit Parameter
Basic paving width m 2.5~5.0
Max. paving width m 8
Max. paving thickness mm 300
Working speed m/min 0~25
Travel speed km/h 0~4.0
Theoretical productivity t/h 800
Hopper capacity t 14
Diesel engine power kW 142
Transportation dimensions mm 6900x2550x3080
Total weight t 20.5~21.8
Engine Manufacturer - Cummins
Engine Model - QSB6.7
Emission - EU Stage Ⅲ
