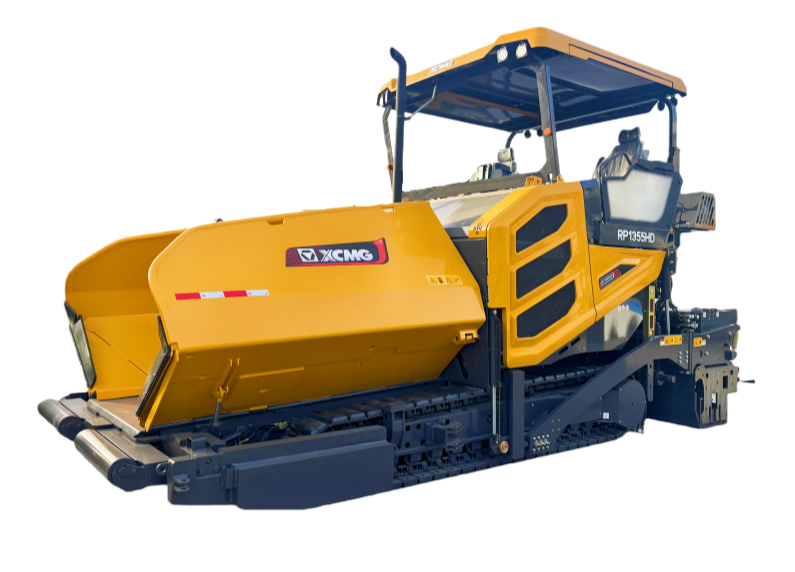

RP1355HD

Universal Tracked Paver
RP1355HD
Basic paving width(m): 3 Max. paving width(m): 13.5 Max. paving thickness(mm): 550
RP1355HD

The RP1355HD paver features reliable quality and excellent operating performance, and can be widely used for paving surface course materials on highways of various classifications. It is particularly suitable for construction requirements involving large-width, one-pass paving. This machine incorporates full hydraulic drive, microcomputer control, left and right independent drive, ultrasonic material level sensing control, electronic automatic leveling, tamper and other world's most advanced technology. The machine has good paving stability, uniform material feeding and distributing, high pre-compaction compaction, good evenness, comfortable operation, convenient maintenance, energy saving and environmental protection and other advantages. Imported key parts and manufacturing quality and reliability reaches the same level of similar imported products. It is the ideal equipment for paving asphalt concrete materials on pavement.

RP1355HD
  • Parameters
PARAMETERS
Item Unit Parameter
Basic paving width m 3
Max. paving width m 13.5
Max. paving thickness mm 550
Working speed m/min 25
Travel speed km/h 3.3
Theoretical productivity t/h 1300
Hopper capacity t 16
Diesel engine power kW 242
Overall dimensions mm 7680×3210×4110
Total weight t 30.5~40.5
Engine Manufacturer - Cummins
Engine Model - QSL8.9C325
Emission - Stage Ⅲ
