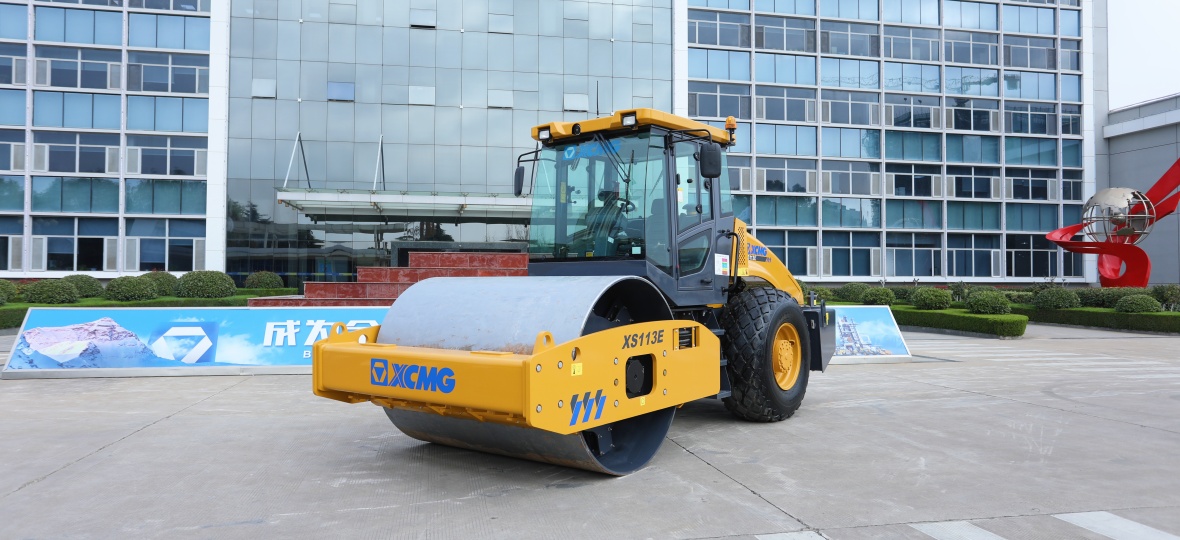

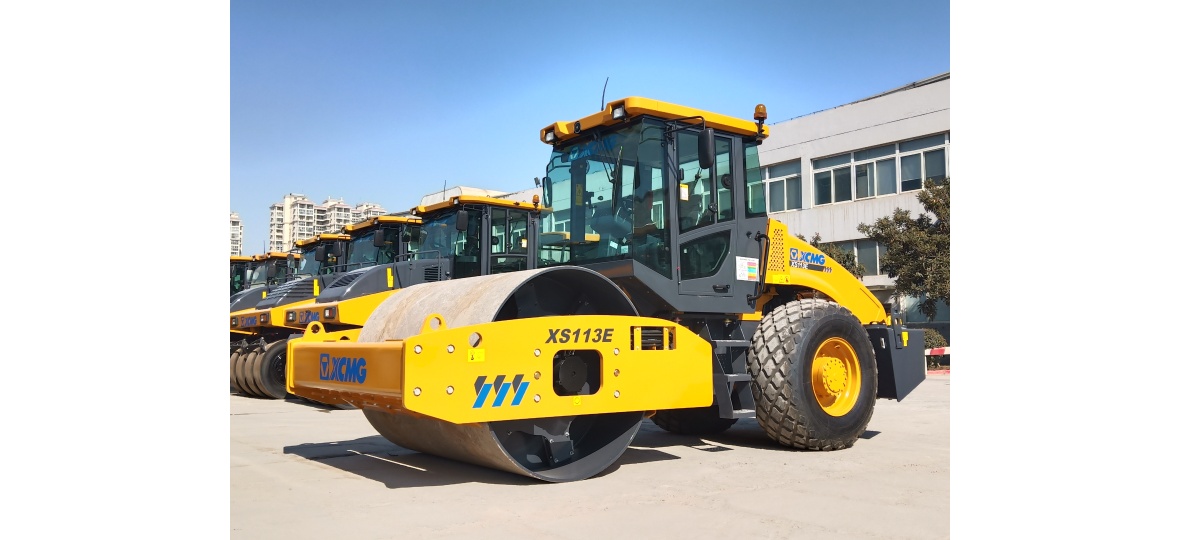

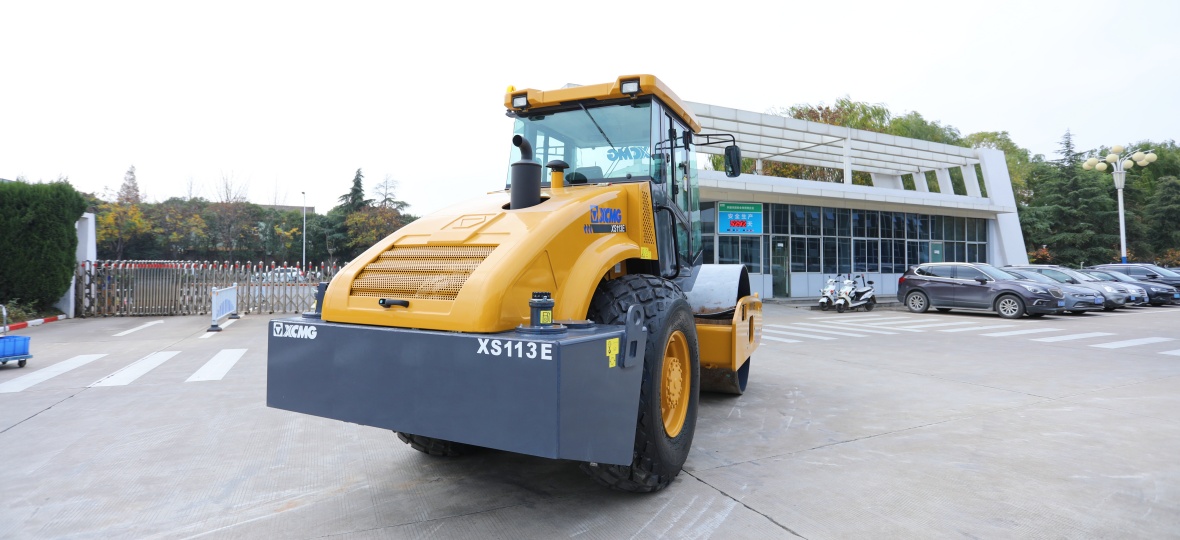

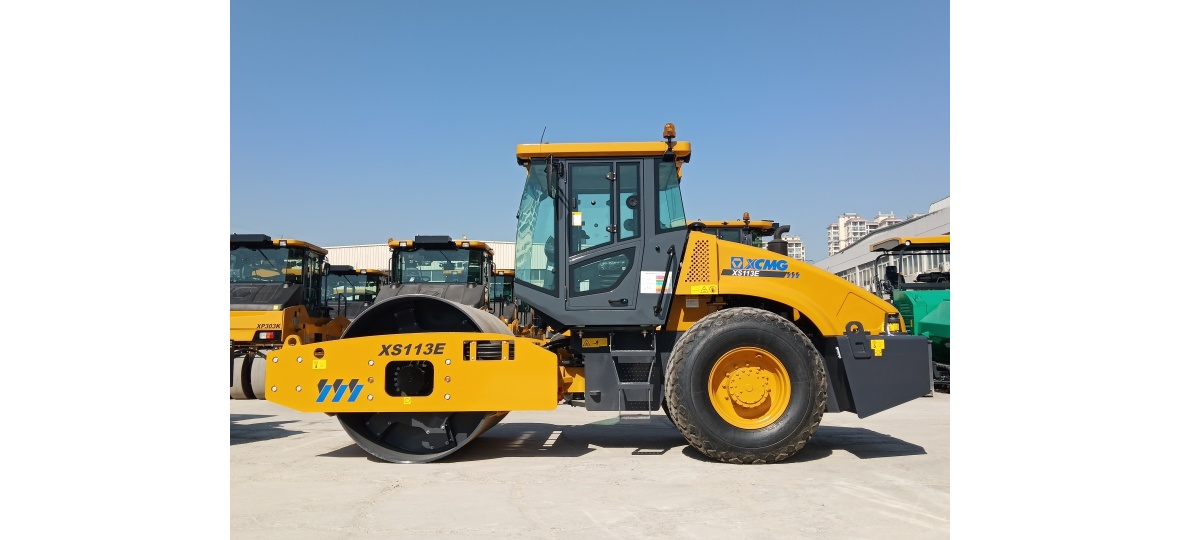

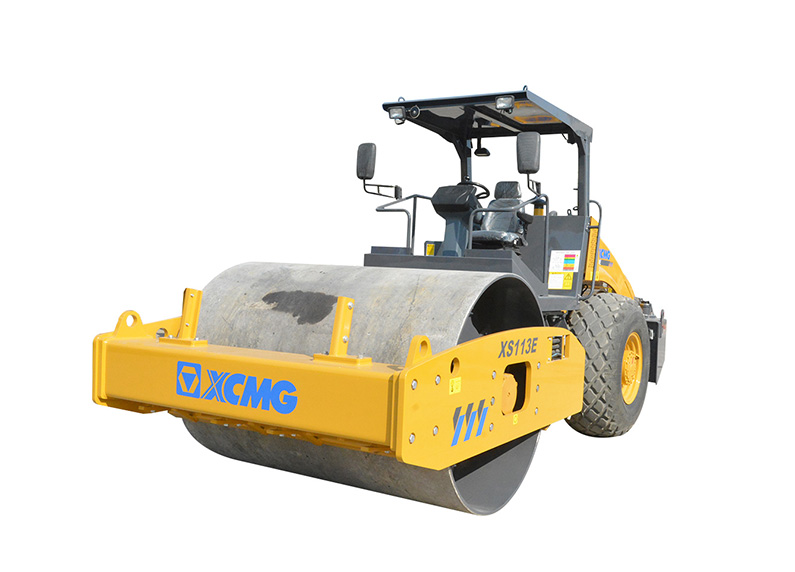

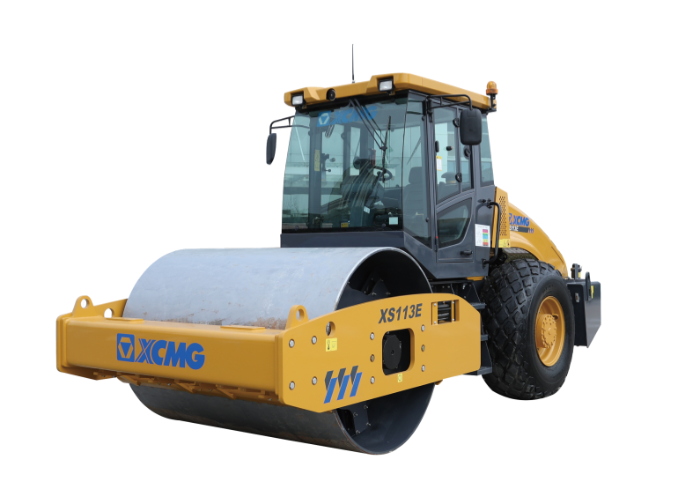

XS113E

Single Drum Vibratory Roller
XS113E
Engine: Cummins Rated power(kW): 93 Rated speed(r/min): 2200
XS113E

XS113E is self-propelled, single drum, full hydraulicdual drive vibratory roller designed specially for southeast Asia market. Featuring high excitation force, high compaction efficiency and good compaction quality,it is widely used in compactionwork on base layer, sub-base layer and rock fill forforestry roads,railways, highways,airports, ports,dams and industrial construction sites.

XS113E
  • Parameters
  • Images Gallery
PARAMETERS
Item Unit Parameter
Engine - Cummins
Rated power kW 93
Rated speed r/min 2200
Type -
Emission - EU Stage Ⅱ
Operating Weight kg 10800
Working width mm 2130
Dimensions mm 5,940 x 2,300 x 3,150
Working speed km/h 0~7.5/0~10
Gradeability % 40
Vibration frequency Hz 32
Images Gallery
