XS365

Single Drum Vibratory Roller
XS365
Engine(-): Weichai Rated power(kW): 276 Rated speed(r/min): 2200
Order Online Service Outlets

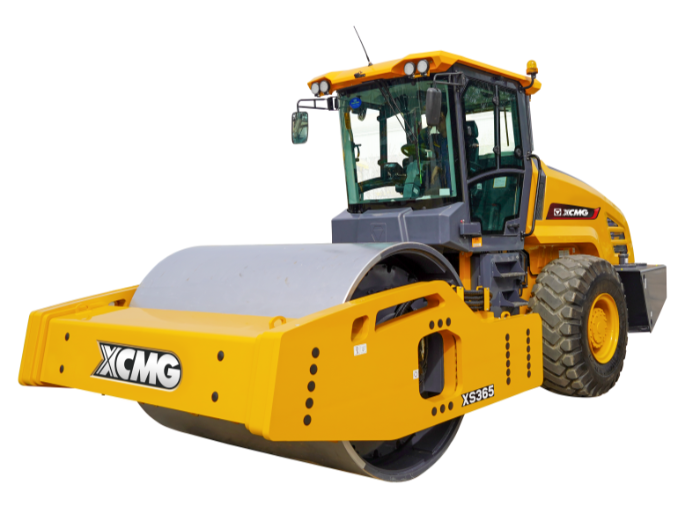

XS365

XS365 is super-tonnage full hydraulic single drum vibratory roller positioning in large depth rock-fill compaction, extra thicklayer compaction as well as conventional layer compaction. It is the ideal compaction equipment for dam rock-fill, ultra-thick hydraulic bonding layer, highway base course and subgrade compaction. This machine uses the highpower engine and has been through many adaptive designs regarding the rock fill dam compaction, can satisfy the dam construction request better.

XS365
Service Outlets Order Online
  • Parameters
  • Images Gallery
PARAMETERS
Item Unit Parameter
Engine - Weichai
Rated power kW 276
Rated speed r/min 2200
Emission - Stage Ⅲ
Operating Weight kg 36000
Working width mm 2400
Dimensions mm 7,592 x 2,900 x 3,478
Working speed km/h 0～4；0～5；0～5.5；0～10.4
Gradeability % 40
Vibration frequency Hz 26/31
