XQZ178

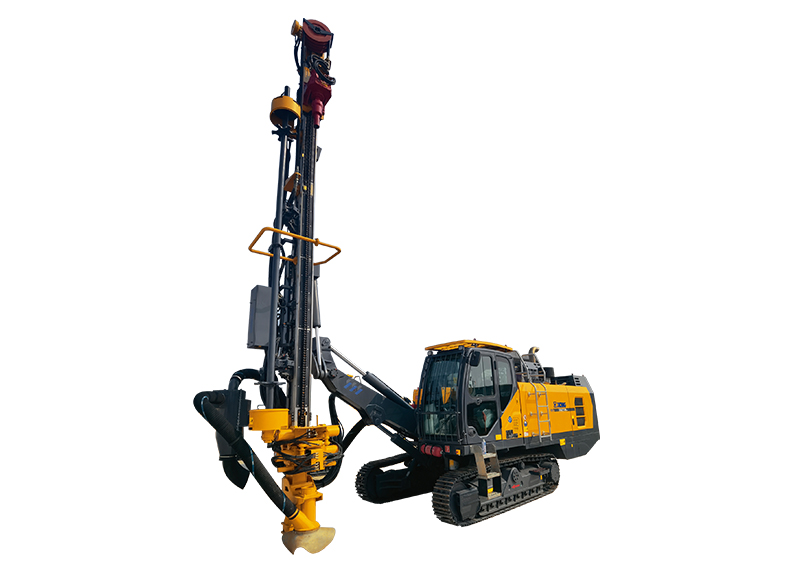

Surface Down-The-Hole Drill Rig

XQZ178

Drilling diameter (mm): Ф138-Ф178 Max. hole depth (m): 36 Rated power (kW): 354

Order Online Service Outlets

XQZ178

XQZ178

Service Outlets Order Online

Parameters

PARAMETERS

Item Unit Parameter: Drilling diameter mm Ф138-Ф178; Max. hole depth m 36; Rated power kW 354; Engine - Cummins QSZ13-C475; Emission standard - CN III; Air volume m³/h 24; Air compressor - Atlas Copco; Rotary torque N·m 5800; Rotary speed rpm 90; Weight kg 24500; Transport dimensions mm 11800×2700×3560
