RP603L

Wheeled Paver
RP603L
Basic paving width(m): 2.5~4.75 Max. paving width(m): 6 Max. paving thickness(mm): 260
RP603L

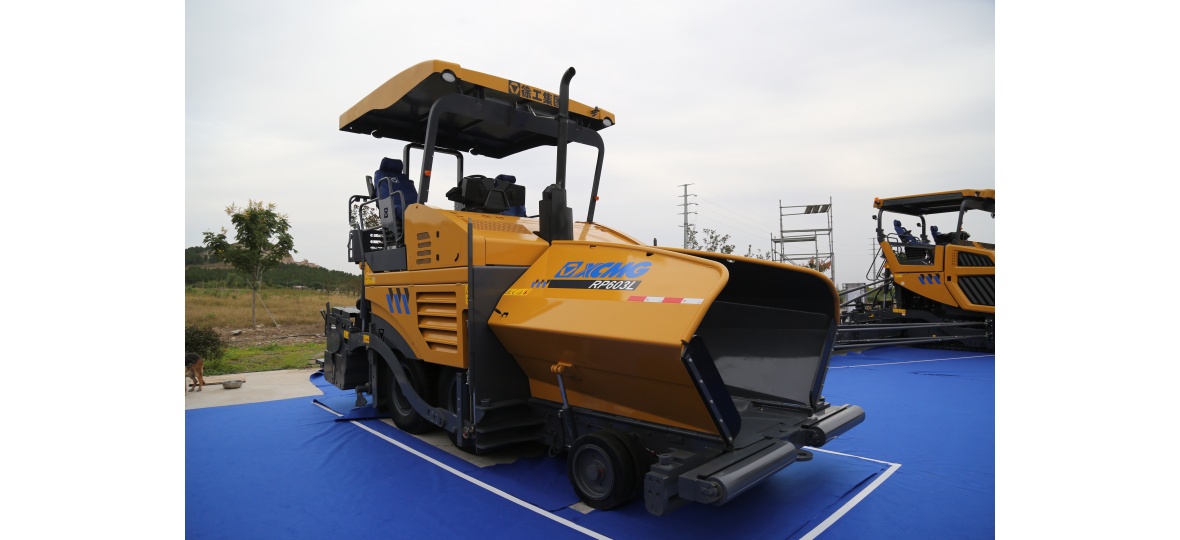

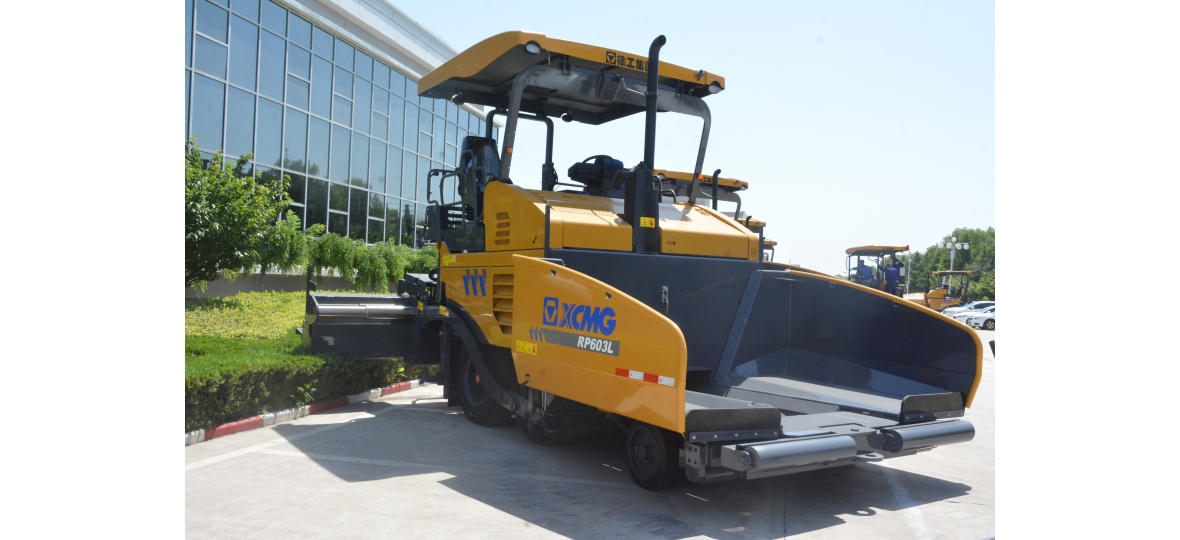

RP603L is a medium-sized wheeled paver, equipped with E475T single tamper electric heating hydraulic extending screed. The infinite variable paving width, with the self-differential ASC, results in a stable and reliable paving quality and high adaptability. It is mainly applicable to the paving construction of asphalt pavement of graded highways and municipal roads, as well as repair and maintenance works of various roads. It is a perfect choice for where requires high flexibility.

RP603L
  • Parameters
  • Images Gallery
PARAMETERS
Item Unit Parameter
Basic paving width m 2.5~4.75
Max. paving width m 6
Max. paving thickness mm 260
Working speed m/min 23
Travel speed km/h 17
Theoretical productivity t/h 400
Hopper capacity t 13
Diesel engine power kW 103
Transportation dimensions mm 6660×2600×3180
Total weight t 16.9~17.5
Engine Manufacturer - SDEC
Engine Model - SC4H140G3
Emission - EU Stage Ⅲ
